rehh:全基因组选择印记扫描
简介
Sabeti在2002年的时候提出了一种叫做Extended Haplotype Homozygosity (EHH)的统计方法，用来扫描全基因组范围内的选择印记。在此基础上又衍生出了iHS、XP-EHH以及Rsb等统计方法。R包rehh实现了这几种统计方法的封装。
应用
rehh支持非常多类型的输入数据，这里我们使用用的较多的数据类型vcf数据，其他的数据类型可以查看
vignette 。
数据输入
该包提供了一些示例数据，这里我们使用的是提供的bta12_cgu.vcf.gz数据
$ zcat bta12_cgu.vcf.gz|less
##fileformat=VCFv4.2
##reference=Btau20070913-freeze
##INFO=<ID=NS,Number=1,Type=Integer,Description="Number of Samples With Data">
##FORMAT=<ID=GT,Number=1,Type=String,Description="Genotype">
#CHROM POS ID REF ALT QUAL FILTER INFO FORMAT CGU_MN026 CGU_MN027
12 79823 F1200140 T A . PASS NS=140 GT 1|1 0|1 1|1
12 125974 F1200150 C G . PASS NS=140 GT 1|1 1|0 1|0
12 175087 F1200170 G C . PASS NS=140 GT 0|0 1|1 1|1
12 219152 F1200180 A T . PASS NS=140 GT 1|1 1|1 1|1
12 256896 F1200190 T A . PASS NS=140 GT 0|1 1|1 1|1
12 316254 F1200210 C G . PASS NS=140 GT 1|0 0|1 0|0
读取vcf数据之前，先安装R包vcfR
if(!require(vcfR))
BiocManager::install("vcfR")
if(!require(rehh))
install.packages("rehh")
## 数据读取、转换，rehh提供了一个函数data2haplohh
hh <- data2haplohh(hap_file = "bta12_cgu.vcf.gz",
polarize_vcf = FALSE)
* Reading input file(s) *
Scanning file to determine attributes.
File attributes:
meta lines: 4
header_line: 5
variant count: 1424
column count: 149
Meta line 4 read in.
All meta lines processed.
gt matrix initialized.
Character matrix gt created.
Character matrix gt rows: 1424
Character matrix gt cols: 149
skip: 0
nrows: 1424
row_num: 0
Processed variant: 1424
All variants processed
Extracting map information.
Extracting haplotypes.
Number of individuals which are
Haploid Diploid Triploid, ... :
1 2
0 140
* Filtering data *
Discard markers genotyped on less than 100 % of haplotypes.
No marker discarded.
Data consists of 280 haplotypes and 1424 markers.
Number of mono-, bi-, multi-allelic markers:
1 2
27 1397
计算EHHS、可视化
#这里我们选择SNP位点F1205400
res <- calc_ehhs(hh,
mrk = "F1205400",
include_nhaplo = TRUE)

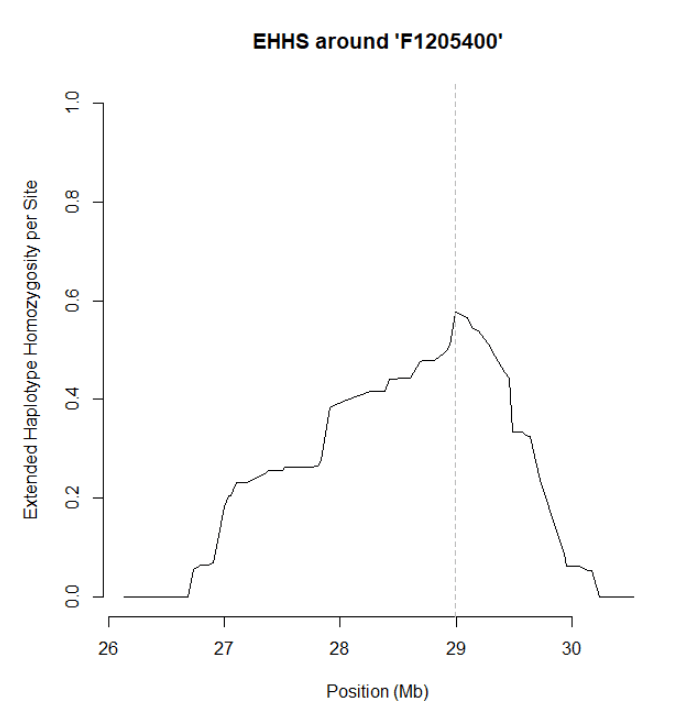

#可视化EHHS
plot(res)

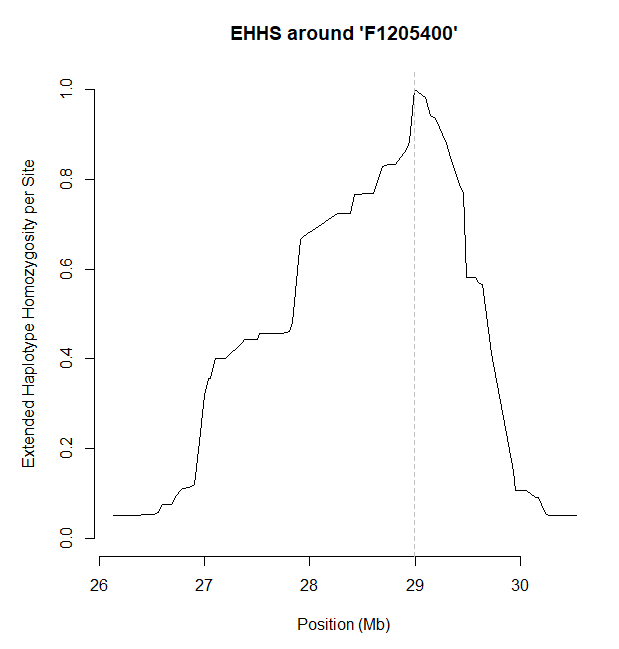

calc_ehhs会计算出EHHS以及nEHHS(un-normalized EHHS)，plot默认可视化的是EHHS，也可以绘制nEHHS，此时focal marker也就是我们这里选的F1205400SNP处的EHHS的值会被归一化为1.
plot(res, nehhs = TRUE)
数据实战
下面使用我们自己的数据来分析，前期我们重测序了1000份油菜，分为三类生态型：春型、半冬型、冬型。我们可以分别检测这三个群体某个位点的选择印记。
#首先提取各个群体的SNP，准备需要提取的样品名称,这里提取S、SW、W
$ less S.txt
R4168
R4190
R4205
R4210
R4216
...
#提取SNP
/public/home/jianglix/biosoft/vcftools/bin/vcftools --gzvcf Bna.snp.maf.0.05.int.0.5.vcf.gz --keep ./s --recode --recode-INFO-all -c > pop-S.vcf
/public/home/jianglix/biosoft/vcftools/bin/vcftools --gzvcf Bna.snp.maf.0.05.int.0.5.vcf.gz --keep ./w --recode --recode-INFO-all -c > pop-W.vcf
/public/home/jianglix/biosoft/vcftools/bin/vcftools --gzvcf Bna.snp.maf.0.05.int.0.5.vcf.gz --keep ./sw --recode --recode-INFO-all -c > pop-SW.vcf
#建立tabix索引
~/biosoft/htslib1.9/bin/bgzip < pop-S.vcf > pop-S.vcf.gz
~/biosoft/htslib1.9/bin/tabix -p vcf pop-S.vcf.gz
~/biosoft/htslib1.9/bin/bgzip < pop-SW.vcf > pop-SW.vcf.gz
~/biosoft/htslib1.9/bin/tabix -p vcf pop-SW.vcf.gz
~/biosoft/htslib1.9/bin/bgzip < pop-W.vcf > pop-W.vcf.gz
~/biosoft/htslib1.9/bin/tabix -p vcf pop-W.vcf.gz
##如果SNP缺失过多，可以基因型填补，因为缺失太多会影响后续分析
java -jar -Xmx110G "-Djava.io.tmpdir=/database/tmp/" ~/biosoft/beagle/beagle5.jar gt=pop-S.vcf.gz out=pop-S.imputed
java -jar -Xmx110G "-Djava.io.tmpdir=/database/tmp/" ~/biosoft/beagle/beagle5.jar gt=pop-SW.vcf.gz out=pop-SW.imputed
java -jar -Xmx110G "-Djava.io.tmpdir=/database/tmp/" ~/biosoft/beagle/beagle5.jar gt=pop-W.vcf.gz out=pop-W.imputed
基因选取
我们可以选择某些基因区域来查看此基因在不同的群体（春、冬、半冬）中是否受到选择，这里我们选择开花相关基因FLC.A10 (20022944~20027730)。选取基因上下游50KB进行分析
#bed文件，用于提取SNP
10 19982944 20067730
#SNP提取
~/biosoft/htslib1.9/bin/tabix -R flc.A10.bed -h pop-S-imputed.vcf.gz > pop-S.flc.A10.vcf
~/biosoft/htslib1.9/bin/tabix -R flc.A10.bed -h pop-SW-imputed.vcf.gz > pop-SW.flc.A10.vcf
~/biosoft/htslib1.9/bin/tabix -R flc.A10.bed -h pop-W-imputed.vcf.gz> pop-W.flc.A10.vcf
EHHS分析
一般来说是根据GWAS或者其它选择性清除分析结果来选取focal marker,这里我就随便选个SNP(10_20025969)
library(rehh)
library(tidyverse)
s <- data2haplohh("pop-S.flc.A10.vcf", polarize_vcf = FALSE)
sw <- data2haplohh("pop-SW.flc.A10.vcf", polarize_vcf = FALSE)
w <- data2haplohh("pop-W.flc.A10.vcf", polarize_vcf = FALSE)
snp <- "10_20025969"
res_s <- calc_ehhs(
s,
mrk = snp,
include_nhaplo = TRUE
)
res_sw <- calc_ehhs(
sw,
mrk = snp,
include_nhaplo = TRUE
)
res_w <- calc_ehhs(
w,
mrk = snp,
include_nhaplo = TRUE
)
data_s <- res_s$ehhs %>%
mutate(pos = POSITION / 1000000) %>%
mutate(type = "Spring")
data_sw <- res_sw$ehhs %>%
mutate(pos = POSITION / 1000000) %>%
mutate(type = "Semi-Winter")
data_w <- res_w$ehhs %>%
mutate(pos = POSITION / 1000000) %>%
mutate(type = "Winter")
data_all <- rbind(data_s, data_sw, data_w)
p <- ggplot(data_all, aes(pos,NEHHS,color=type))+
geom_line(size=1.25)+
theme_classic()+
theme(legend.title = element_blank(), legend.position = c(0.75,0.85))+
scale_color_manual(values = c("#22ac38","#6299fd","#63c2cb"))+
labs(x="Chromosome A10 (Mb)", y="EHHS")
print(p)
可以看出差异不大，春冬半冬之间的受选择差异不大，这有可能跟挑选的位点有关。
SessionInfo
devtools::session_info()
- Session info -------------------------------------------------------------------------------------------------------------------------------------------------
setting value
version R version 3.6.1 (2019-07-05)
os Windows 10 x64
system x86_64, mingw32
ui RStudio
language (EN)
collate Chinese (Simplified)_China.936
ctype Chinese (Simplified)_China.936
tz Asia/Taipei
date 2019-08-14
